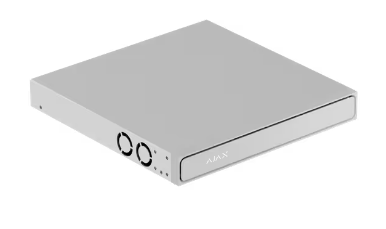

Ajax 160692.122.WH3 NVR H2D8PAC (16ch) (9NA) white
Product Details
NVR H2D8PAC (16-ch) is a network video recorder with a 4K HDMI output, 8 built-in PoE ports and two hot-swappable drive bays. The PoE ports power and connect the cameras directly, so a small site needs no separate injector or switch — recorder, power and network in one box.
It records 16 channels from Ajax cameras and third-party IP cameras over ONVIF and RTSP. Each PoE port delivers up to 25 W under IEEE 802.3af/at, with a total budget of up to 160 W across the switch. Gigabit Ethernet uplink, 160 Mbps in each direction, three USB 2.0 ports. Mains powered at 100–240 V, drawing up to 280 W with cameras attached. JetSparrow dual-stream technology keeps archive navigation fast and the transfer encrypted, and the archive is synchronised with security system events, so an alarm can be reviewed as footage in one step.
Two SATA III bays take hot-swappable drives, so a failed disk is pulled and replaced without powering the recorder down — recording continues through the service call instead of leaving a gap in the archive. Access rights are set per user, footage export carries a digital signature verified by Ajax Media Player, and account security covers two-factor authentication, session control and biometric login. Supplied in the white finish; the same recorder in black is stocked as 160691.122.BL3.
Features
- 16-channel network video recorder
- 8 × IEEE 802.3af/at PoE ports, up to 25 W each
- Total PoE power budget up to 160 W
- Gigabit Ethernet uplink (10/100/1000 Mbps)
- 160 Mbps incoming and outgoing bandwidth
- 3 × USB 2.0 Type-A ports (2 rear, 1 front)
- Mains powered: 100–240 V, 50/60 Hz
- Records from Ajax cameras and third-party IP cameras via ONVIF and RTSP
- 4K HDMI output (3840 × 2160) for on-site live view and playback
- 2 × SATA III hot-swappable drive bays
- Continuous recording during drive replacement
- Built-in VMS for local management
- Instant alarm verification in high resolution
- Archive synchronization with Ajax security system events
- Customizable virtual video wall across multiple cameras
- Fast archive navigation with JetSparrow dual-stream technology
- H.265, H.264 and JetSparrow decoding
- ONVIF Profile G and S conformance, with RTSP support
- Multi-tiered account security: 2FA, session control, biometric login
- Available in white and black
Specifications
| Technical | |
|---|---|
| Video Input | 16 channels |
| Decoding Capability | 2 × channel at 4096 × 4096 px (25 fps) | 4 × at 3840 × 2160 px (25 fps) | 8 × at 2880 × 1620 px (25 fps) |
| Motion Detection | 16 channels (Ajax camera and NVR) |
| PoE Ports | 8 × 802.3af/at PoE RJ45 fast Ethernet, up to 25 W per port |
| Total PoE Power Budget | Up to 160 W |
| USB | 2 × rear USB 2.0 | 1 × front USB 2.0 |
| Recording Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 3840 × 2160 | 1920 × 1080 | 1280 × 1024 | 1280 × 720 px |
| Live View / Playback Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, JetSparrow |
| Live View Window Division | Templates 1, 4, 9, 16, 25, 5+1, 7+1, 12+1 | custom up to 10 × 10 |
| Synchronous Playback | 4 channels |
| HDD/SSD Interface | 2 × SATA III, drives up to 16 TB, hot-swap capable |
| Network Bandwidth | Incoming and outgoing up to 160 Mbps |
| ONVIF | Conformant with ONVIF Profile G and S |
| Physical | |
|---|---|
| Dimensions | 12.99″ × 12.99″ × 1.73″ |
| Weight | 7.2 lb (without drives) |
| Main Power Supply | 100–240 V, 50/60 Hz, 5 A |
| Power Consumption | Up to 280 W |
| Clock Battery | CR2032, 3 V |
| Operating Temperature Range | 32 °F to 122 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
