Description

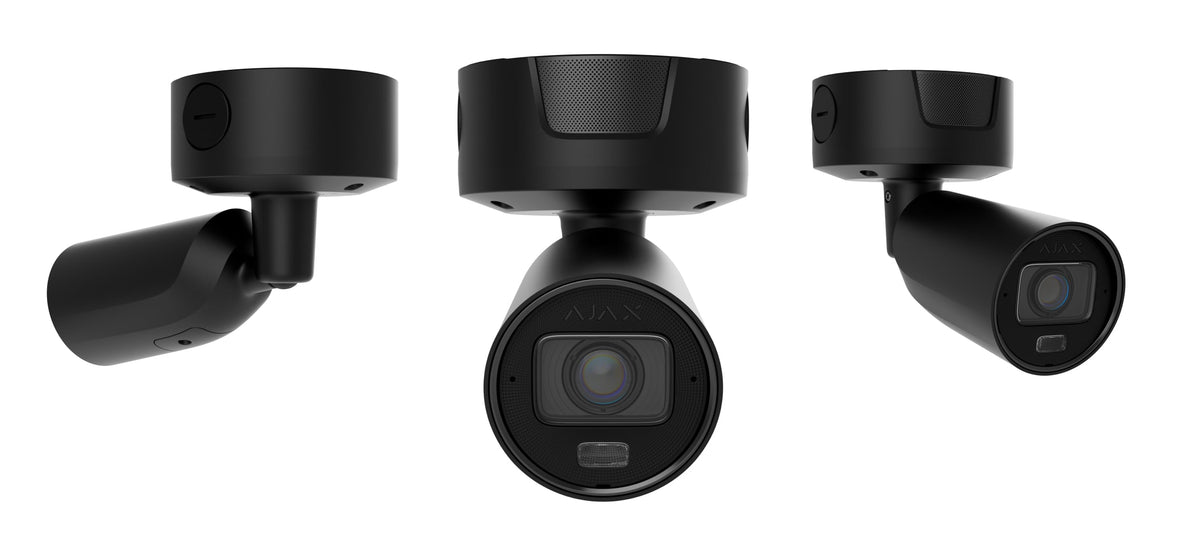

Ajax 135569.217.BL1 Superior BulletCam HLVF (4 Mp) ASP black
Product Details
The Ajax Superior BulletCam HLVF (4 Mp) is a wired AI-powered security IP camera with a 2.8–12 mm motorized varifocal P-Iris lens, hybrid illumination, True WDR, built-in microphone and speaker, audio and alarm inputs/outputs, and PoE/12 V. For outdoor and indoor use.
The camera uses a 1/1.8" 4 MP CMOS sensor and records at up to 4 MP (2688 x 1520). The varifocal lens covers 2.8–12.0 mm, giving a field of view of horizontal: 47°–110°, vertical: 26°–56°, diagonal: 54°–135°. Wide dynamic range is handled by True WDR.
The housing is rated IP67 and IK10, and it operates from -40 °F to 140 °F. Hybrid illumination reaches 131 ft on the white LED and 196 ft on the IR LED, so the camera can hold color detail after dark rather than falling back to monochrome. It is powered over Ethernet (802.3at/af (Class 4)) or from an external 12 V DC +/-20%, 1.5 A supply. On-camera AI detection covers people, pets, vehicles, line-crossing, which cuts down on nuisance alerts from moving light and weather. The bullet body mounts to a wall or soffit with the sun shield and cable management built into the bracket arm, which suits a defined view down a fence line, driveway or loading bay. This is the black finish.
Features
- Resolution: 4 MP (2688 x 1520), 3 MP (2304 x 1296), 2 MP (1920 x 1080), 0.6 MP (1024 x 576)
- Image sensor: 4 MP CMOS, 1/1.8" type
- Lens: 2.8–12.0 mm
- Field of view: horizontal: 47°–110°, vertical: 26°–56°, diagonal: 54°–135°
- Illumination range: white LED: up to 131 ft, IR LED: up to 196 ft
- Dynamic range: True WDR
- Frame rate: up to 25 fps
- AI object detection: People, Pets, Vehicles, Line-crossing
- Video codec: H.265, H.264, MJPEG
- Storage: microSD, Ajax NVR
- Built-in microphones: 2
- Built-in speaker: yes — The camera supports two-way communication
- Speaker output power: 3 W
- ONVIF®: conformant with ONVIF® Profile G and S
- PoE: 802.3at/af (Class 4)
- Power consumption: maximum: up to 12 W, average: up to 6 W
- Protection class: IP67, IK10
- Operating temperature: from -40 °F to 140 °F
- Dimensions: 11.56" x 5.35" x 5.35"
- Weight: 3.307 lb
Specifications
| Technical | |
|---|---|
| Image sensor | 4 MP CMOS, 1/1.8" type |
| Lens focal length | 2.8–12.0 mm |
| Maximum aperture | f/1.4–2.3 |
| Lens iris type | P-Iris |
| Lens focal type | varifocal |
| Field of view | horizontal: 47°–110°; vertical: 26°–56°; diagonal: 54°–135° |
| Maximum illumination distance | white LED: up to 131 ft; IR LED: up to 196 ft |
| Resolution | 4 MP (2688 x 1520); 3 MP (2304 x 1296); 2 MP (1920 x 1080); 0.6 MP (1024 x 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 90°, 180°, 270° |
| Video codec | H.265, H.264, MJPEG |
| Dynamic range | True WDR |
| Storage | microSD; Ajax NVR |
| Built-in microphones | 2 |
| Audio codec | G.711 u-law, G.711 A-law, G.726, G.722 |
| Built-in speaker | The camera supports two-way communication. |
| Output speaker power | 3 W |
| Motion detection | The camera detects motion using software-based image frame analysis. |
| AI object detection | People; Pets; Vehicles; Line-crossing |
| Port | 1 x RJ45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Alarm port – Lines for third-party devices | 2 |
| Alarm IN type | NO, NC |
| Alarm OUT operating range | 24 V DC, 300 mA |
| Audio port – Lines for third-party devices | 2 |
| Audio IN type | external microphone input |
| Audio IN settings | gain; enable/disable |
| Audio OUT type | speaker output |
| Video transmission | JetSparrow |
| Focal length change | autofocus; manual focus control |
| mTLS | Encrypted connection for data protection. |
| Authentication | via Ajax Cloud |
| Secure Boot | Protection against firmware spoofing. |
| OTA signature verification | Secure automatic firmware update. |
| Accelerometer | Alerts on attempts to move or dismount the camera. |
| PoE standard | 802.3at/af (Class 4) |
| External power connector type | screw terminal connector (2 pin) |
| Power consumption | maximum: up to 12 W; average: up to 6 W |
| Power supply unit | 12 V DC +/-20%, 1.5 A |
| Physical | |
|---|---|
| Dimensions | 11.56" x 5.35" x 5.35" |
| Weight | 3.307 lb |
| Operating temperature range | from -40 °F to 140 °F |
| Operating humidity | up to 90% |
| Protection class | IP67, IK10 |
| Included in box | Ajax Superior BulletCam HLVF (4 Mp); Installation template; Installation kit; 3 screw terminal connectors; Quick start guide |
Specifications subject to change.
